RJHSE-5381
モジュラーコネクタ/Ethernetコネクタ R/A RJ45 SHEILDED 8 CONT Y/G LEDS
廠商型號:
RJHSE-5381
芯天下內部編號:
36-RJHSE-5381
生產廠商:
Amphenol Commercial Products
描述:
モジュラーコネクタ/Ethernetコネクタ R/A RJ45 SHEILDED 8 CONT Y/G LEDS
產品類別:
Connectors, Interconnects|Modular Connectors - Jacks|RJHSE

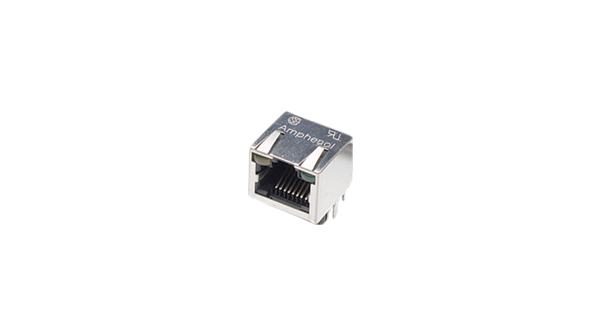

所示圖像僅為示意圖,。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Matchcode | RJHSE5381 |
| No.of contacts | 08 |
| Unit Pack | 1440 |
| Standard Leadtime | 10 weeks |
| MOQ | 1 |
| Contact style | FEMALE |
| Shielded | -20 TO 85 |
| Automotive | NO |
| Leadfree Defin. | RoHS-conform |
| Ratings | Cat5 |
| Tab Direction | Up |
| Shielding | Shielded, EMI Finger |
| Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Termination | Solder |
| Standard Package | 120 |
| Connector Type | Jack |
| Contact Finish | Gold |
| Packaging | Tray |
| Number of Ports | 1 |
| Operating Temperature | -55°C ~ 85°C |
| LED Color | Yellow - Green |
| Features | Board Lock |
| Orientation | 90° Angle (Right) |
| Contact Finish Thickness | 50μin (1.27μm) |
| Housing Material | Thermoplastic |
| Other Names | RJHSE5381 |
| Contact Material | Phosphor Bronze |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 120 |
| Current Rating | 1.5 A |
| Termination Style | Through Hole |
| Part # Aliases | 625-0009 82K9426 |
| Product Category | Modular Connectors / Ethernet Connectors |
| Voltage Rating | 125 V |
| Number of Positions / Contacts | 8 |
| Contact Plating | Gold |
| Flammability Rating | UL 94 V-0 |
| Operating Temperature Range | - 20 C to + 85 C |
| Gender | Female |
| RoHS | RoHS Compliant |
| Mounting Angle | Right |
| USOC Codes | RJ45 |
| Color | Black |
| Series | RJHSE |
| Performance Category | Cat 5 |
| Pitch | 1.27 mm |
| Positions Loaded | 8 |
| Contact Resistance Max | 20 mohm |
| Current Rating (Max) | 1.5 A |
| Mounting Style | Through Hole |
| Body Orientation | Right Angle |
| Type | RJ-45 |
| Number of Contacts | 8 POS |
| Product Length (mm) | 16.51 mm |
| Product Depth (mm) | 15.75 mm |
| Product Height (mm) | 13.46 mm |
| Voltage Rating Max | 125VAC |
| Pitch (mm) | 2.03 mm |
| Category Number | Cat 5 |
| Family | RJHSE |
| DELETED | Compliant |
| No. of Contacts | :8 |
| No. of Positions | :8 |
| No. of Ports | :1 |
| LAN Category | :Cat5 |
| Contact Termination | :Through Hole Right Angle |
| Weight (kg) | 0.59 |
| Tariff No. | 85366910 |
| Angle | Right |
| Brand/Series | RJHSE |
| Height | 0.53 in. |
| Length | 0.65 in. |
| Material, Contact | Phosphor Bronze |
| Material, Housing | Thermoplastic |
| Primary Type | Modular |
| Special Features | High Temp, Shielded |
| Specification | RJ45 |
| Electrical mounting | THT |
| Connector | socket |
| Dimensions | see |
| Multiplicity | 1 |
| Type of pin configuration | 8p8c |
| Spatial orientation | angled 90° |
| Gross weight | 4.04 g |
| Connector type | RJ45 |
| Ethernet category | Cat 5 |
| Collective package [pcs] | 2 |
| spg | 2 |
